In the manufacturing world, there is a famous “valley of death” between the prototype and the mass-produced part. If you need one part, you can 3D print or machine it. If you need 50,000 parts, you invest in steel tools for plastic injection moulding. But what if you need 50 parts? Or 500?
For decades, this middle ground was a problem. Injection moulding tooling is too expensive (often £10,000+), and machining is too slow.
The solution is RIM Moulding (Reaction Injection Moulding).
At Castech, while we are known for our metal castings, our expertise in Polyurethane Mouldings allows us to offer this versatile alternative. RIM is the perfect process for producing Rigid Solid Polyurethane components. It offers the strength and finish of a thermoplastic but with a fraction of the tooling cost and lead time.
Whether you need rapid samples for testing or a low-volume production run of complex enclosures, RIM is the technology that bridges the gap.
The Quick Answer

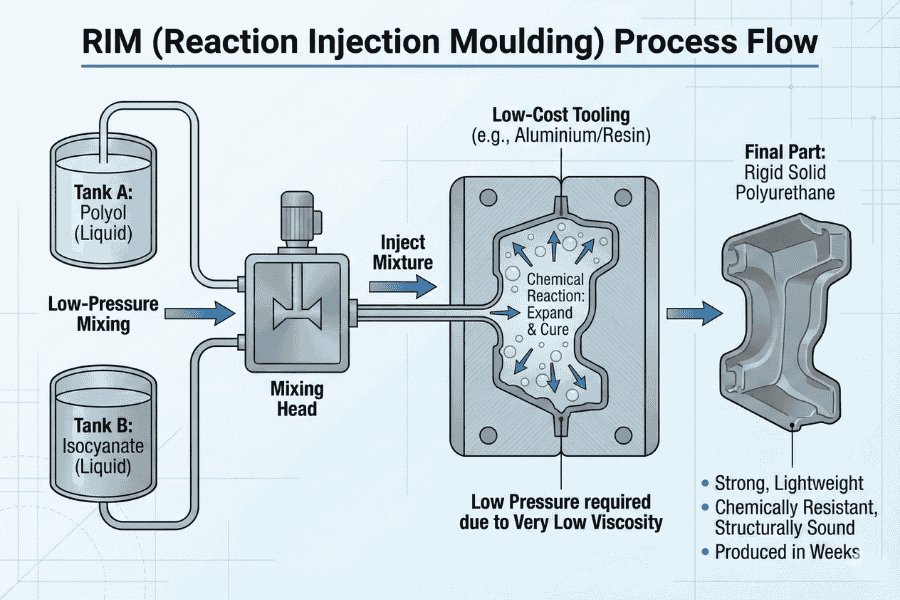

RIM (Reaction Injection Moulding) is a low-pressure manufacturing process used to create strong, lightweight plastic parts. Unlike standard injection moulding which melts solid pellets, RIM mixes two liquid components (a polyol and an isocyanate) which chemically react inside the mould to expand and cure. Because the liquid has very low viscosity, it requires much less pressure to fill the mould. This means we can use low-cost tooling (often made of aluminium or resin) rather than hardened steel. The result is a Rigid Solid Polyurethane part that is chemically resistant, structurally sound, and produced in weeks rather than months.
How RIM Works: The Chemistry of Creation
To understand why RIM is so effective for “Rapid Samples to Low Batch QTY,” you have to understand the physics.

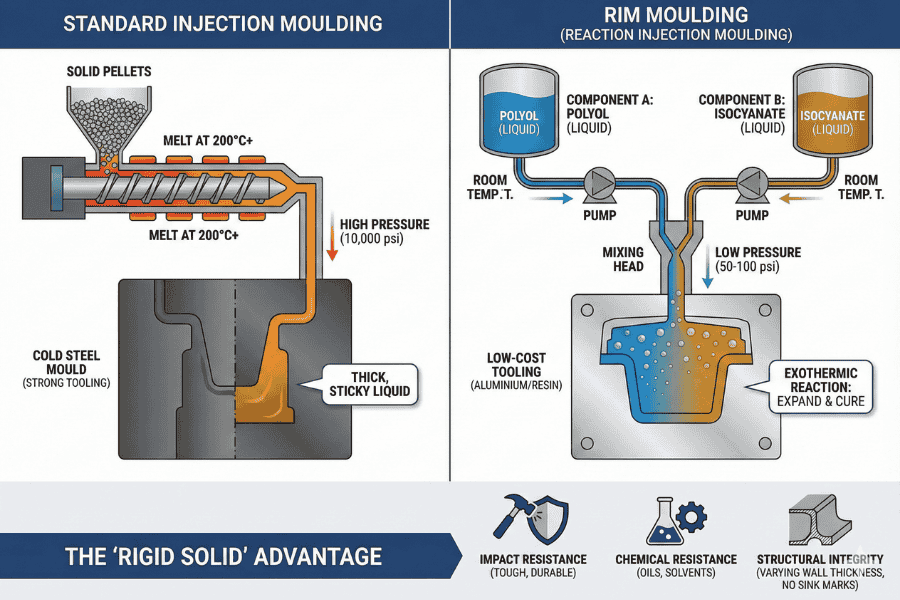

Standard Injection Moulding: You take solid plastic pellets, melt them at high temperatures (200°C+), and force the thick, sticky liquid into a cold steel mould at massive pressures (often 10,000 psi). The tool has to be incredibly strong to stop it from exploding under the pressure.

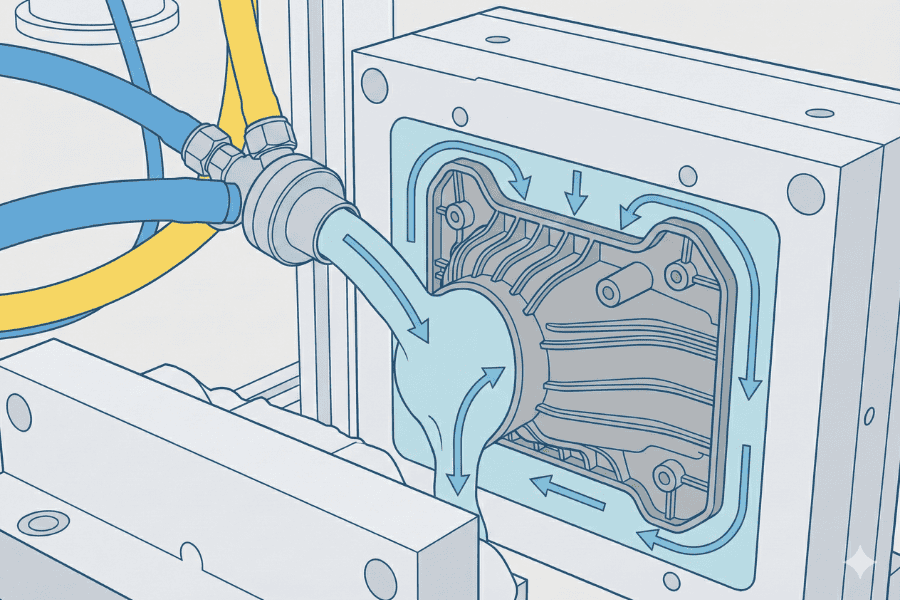

RIM Moulding: We start with two liquids at room temperature.
Component A: Polyol.
Component B: Isocyanate. These liquids are pumped into a mixing head where they collide at high speed. This mixture is then injected into the mould at low pressure (around 50-100 psi). Inside the mould, an exothermic chemical reaction occurs. The liquid expands, fills every tiny detail of the cavity, and cures into a solid plastic.
The “Rigid Solid” Advantage
When people hear “polyurethane,” they often think of soft foam or rubbery wheels. However, by tweaking the chemical formulation, we can produce Rigid Solid Polyurethane.
This material rivals engineering thermoplastics (like ABS or Nylon) for performance.
Impact Resistance: It is tough and durable, making it ideal for medical device housings or industrial covers.
Chemical Resistance: It stands up well to oils, greases, and cleaning solvents.
Structural Integrity: Because the liquid flows so easily, we can mould parts with varying wall thicknesses (thick and thin sections) without the “sink marks” that plague standard injection moulding.

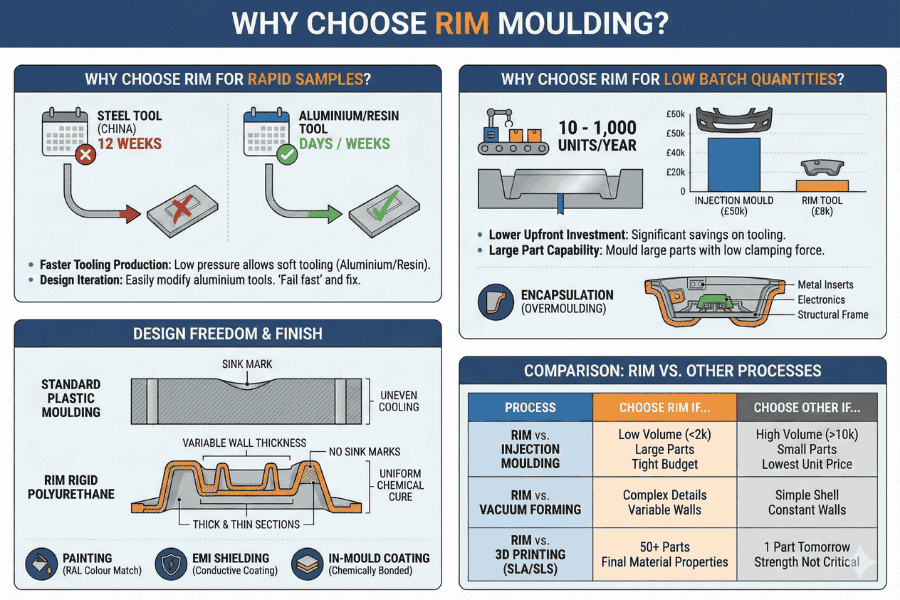

Why Choose RIM for Rapid Samples?
Speed is the currency of modern engineering. If you are developing a new product, waiting 12 weeks for a steel tool from China is not an option.
1. Faster Tooling Production Because the injection pressure is low, the mould does not need to be made from hardened tool steel. We can machine moulds from Aluminium or even high-density Resin.
Aluminium Tooling: Can be machined in days, not weeks.
Soft Tooling: For very low volumes, resin tools are even faster. This allows Castech to deliver “production intent” samples in a fraction of the time.
2. Design Iteration If you test the sample and realise a mounting boss is in the wrong place, modifying an aluminium tool is relatively easy and cheap. Modifying a hardened steel tool is a nightmare. RIM allows you to “fail fast” and fix it quickly.
Why Choose RIM for Low Batch Quantities?
RIM shines in the volume range of 10 to 1,000 units per year.
1. Lower Upfront Investment An injection mould for a large car bumper might cost £50,000. The equivalent RIM tool might cost £8,000. If you are only making 500 bumpers, the cost-per-part savings are massive.
2. Large Part Capability RIM is famous for making big parts. Because the clamping force required is low, you do not need a factory-sized machine to mould a large panel. We can produce large medical equipment covers, automotive body panels, or electronic enclosures that would be prohibitively expensive to injection mould.
3. Encapsulation (Overmoulding) Because the process is low temperature and low pressure, we can place inserts inside the mould before pouring.
Metal Inserts: Threaded brass inserts for screws.
Electronics: We can encapsulate sensors or circuits.
Structural Frames: We can mould the plastic around a steel frame for incredible rigidity.
Design Freedom: Variable Wall Thickness
This is the “killer feature” for designers. In standard plastic moulding, you must keep the wall thickness constant (e.g., 3mm everywhere). If you have a thick section next to a thin section, the plastic cools unevenly and sinks.
RIM Rigid Polyurethane cures chemically, not thermally. This means it shrinks uniformly.
Thick and Thin: You can have a 10mm boss next to a 3mm wall without sink marks.
Ribbing: You can add heavy structural ribs to the back of a part without them showing through to the “A-surface” (the cosmetic side).
This gives industrial designers huge freedom to create complex, flowing shapes that are both beautiful and structurally sound.
Finish and Aesthetics
A RIM part comes out of the mould with a natural skin. However, one of its strengths is how well it takes a finish.
Painting: Rigid PU paints beautifully. We can colour match to any RAL specification, providing a high-gloss automotive finish or a textured industrial look.
EMI Shielding: For electronic housings, we can apply a conductive copper or nickel coating to the inside of the casing to block electromagnetic interference (RFI/EMI).
In-Mould Coating: In some applications, the paint is sprayed into the mould before injection, chemically bonding the colour to the plastic for extreme durability.
Comparison: RIM vs. Other Processes
To help you decide, here is how RIM stacks up against the alternatives.
RIM vs. Injection Moulding:
Choose RIM if: Volume is low (<2,000), parts are large, or the upfront budget is tight.
Choose Injection Moulding if: Volume is high (>10,000), parts are small, and the lowest unit price is critical.
RIM vs. Vacuum Forming:
Choose RIM if: You need complex details (ribs, bosses) on both sides of the part, or you need variable wall thickness.
Choose Vacuum Forming if: The part is a simple shell with constant wall thickness.
RIM vs. 3D Printing (SLA/SLS):
Choose RIM if: You need 50+ parts with material properties that exactly match the final product.
Choose 3D Printing if: You need 1 part tomorrow, and strength is not critical.
Conclusion
RIM Moulding is the unsung hero of low-volume manufacturing. It provides the “factory finish” quality of injection moulding without the eye-watering tooling costs.
For rigid solid polyurethane components – whether it is a bezel for a medical scanner, a housing for a scientific instrument, or a custom automotive bumper – RIM offers the perfect balance of speed, cost, and quality.
At Castech, we integrate this capability alongside our casting services. This means we can supply the complete assembly: the Sand Cast aluminium chassis and the RIM polyurethane cover that goes over it.
