In the diverse world of manufacturing, there is often a trade off between complexity and cost. If you need a simple shape, sand casting is economical. If you need a simple shape in high volume, die casting is efficient. But what happens when you need intricate detail, thin walls, and a surface finish so smooth it looks machined, all in a complex geometry that cannot be made with a standard split mould?
This is where Investment Casting excels. Also known as the “Lost Wax” process, it is one of the oldest metal forming techniques in human history, yet it remains at the cutting edge of aerospace and defence engineering.
For non-ferrous foundries like Castech, a specific variation of this process known as the Soluble Plaster Mould System is a game changer. Unlike the ceramic shell methods used for high melting point metals, the plaster system is uniquely optimised for aluminium and copper alloys. It offers unparalleled surface finishes and the ability to create complex internal structures that other methods simply cannot match.
This guide explores exactly how this process works, why the plaster system is superior for non-ferrous applications, and how it delivers precision components that require minimal machining.
The Quick Answer
Investment Casting (Soluble Plaster Mould System) is a precision manufacturing process used to create complex metal parts with exceptional surface finishes. A wax replica (pattern) of the desired part is created and then encased in a liquid plaster-based slurry. This slurry hardens to form a mould. The wax is then melted out (hence “lost wax”), leaving a perfect negative cavity. Molten aluminium or bronze is poured into this cavity. Once cooled, the plaster mould is dissolved or broken away. This method allows for thinner walls, tighter tolerances, and smoother surfaces than sand casting, making it ideal for aerospace, electronics, and medical components.
What Makes the Plaster System Different?
To understand the value of this process, we must distinguish it from the standard “ceramic shell” investment casting often used for heavy industrial metals.

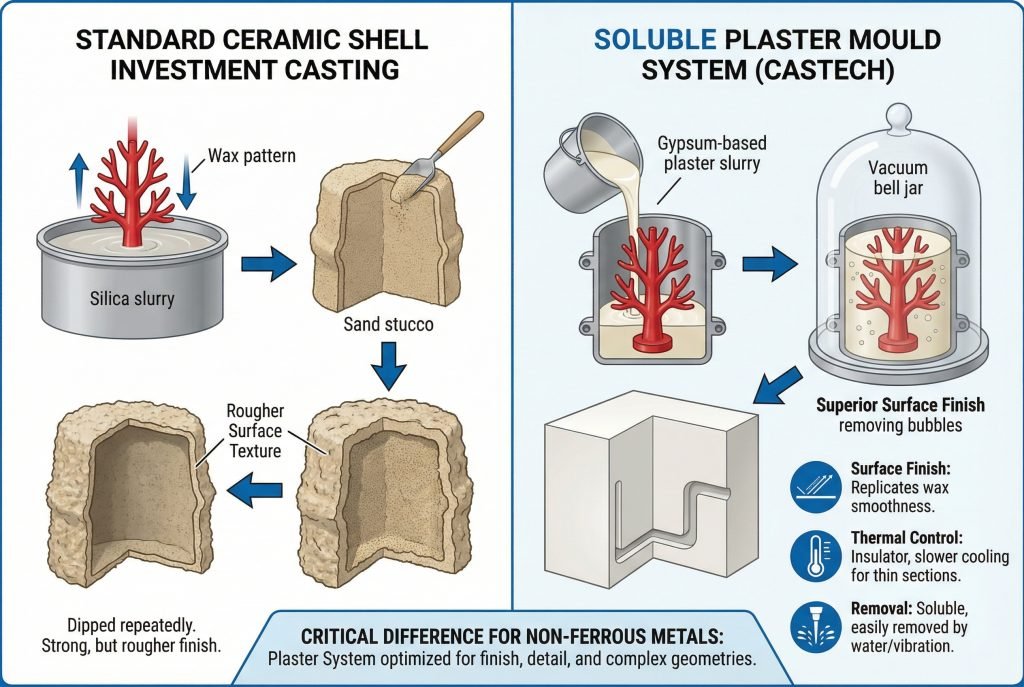

In standard investment casting, the wax pattern is dipped repeatedly in a silica slurry and sand to build up a hard, ceramic shell. While strong, this shell can leave a rougher surface texture.
In the Soluble Plaster Mould System used by Castech, the wax pattern is not dipped. Instead, it is placed in a flask, and a liquid gypsum based (plaster) slurry is poured around it, usually under a vacuum to remove air bubbles.
This difference is critical for non-ferrous metals for three reasons:
Surface Finish: The plaster faithfully replicates the smoothness of the wax pattern, resulting in a surface finish that is far superior to sand or ceramic shell casting.
Thermal Control: Plaster is an insulator. This allows the metal to cool slower, which helps in filling very thin sections that would freeze prematurely in other mould types.
Removal: The “soluble” aspect means the mould material can be easily removed from complex internal passageways using water or vibration, ensuring delicate features are not damaged during breakout.
Key Benefits for Non-Ferrous Applications
Why should a design engineer choose this method over others?

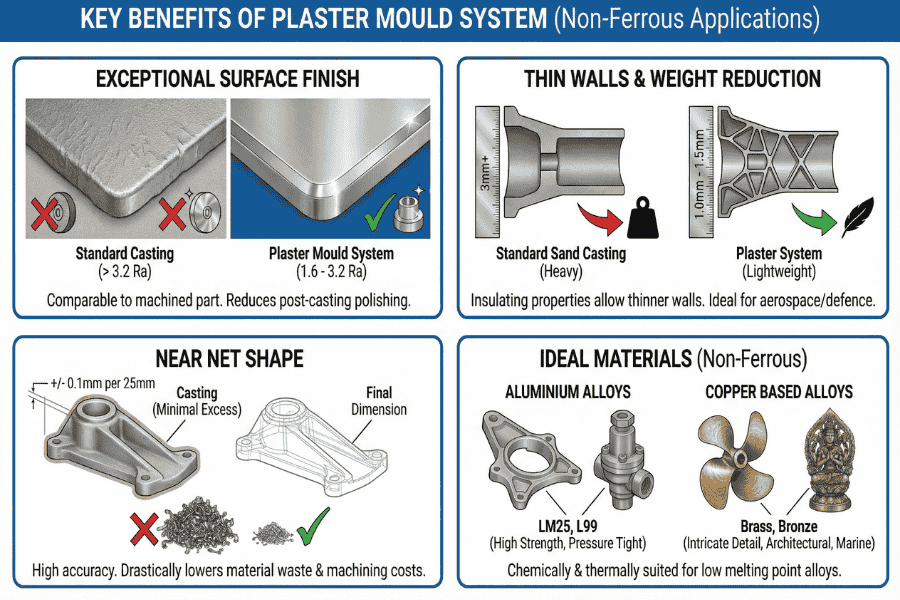

Exceptional Surface Finish
The plaster mould system delivers a surface finish that is often comparable to a machined part. Typical roughness values can be as low as 1.6 to 3.2 Ra (micrometres). For applications like electronic housings or visible architectural fittings, this reduces or eliminates the need for expensive post casting polishing.
Thin Walls and Weight Reduction
In industries like aerospace and defence, weight is the enemy. Standard sand casting requires thick walls (usually 3mm+) to ensure the metal fills the mould. The insulating properties of the plaster system allow Castech to cast walls as thin as 1.0mm to 1.5mm reliably. This allows engineers to design lightweight, efficient components without sacrificing structural integrity.
Near Net Shape
“Near Net Shape” means the casting is almost identical to the final required dimensions. Because the process is so accurate (typically +/- 0.1mm per 25mm), there is very little excess metal to machine away. This reduces material waste and drastically lowers the cost of secondary machining operations.
Ideal Materials
This process is chemically and thermally suited for non-ferrous alloys.
Aluminium Alloys: Aluminium is the primary metal for this process. Its low melting point pairs perfectly with the gypsum mould. Grades like LM25 and L99 are commonly used for high strength, pressure tight applications in aviation and defence.
Copper Based Alloys: Brass and Bronze castings also benefit from this method. The process is excellent for producing intricate Bronze Castings for architectural hardware, marine fittings, or art pieces where detail is paramount.

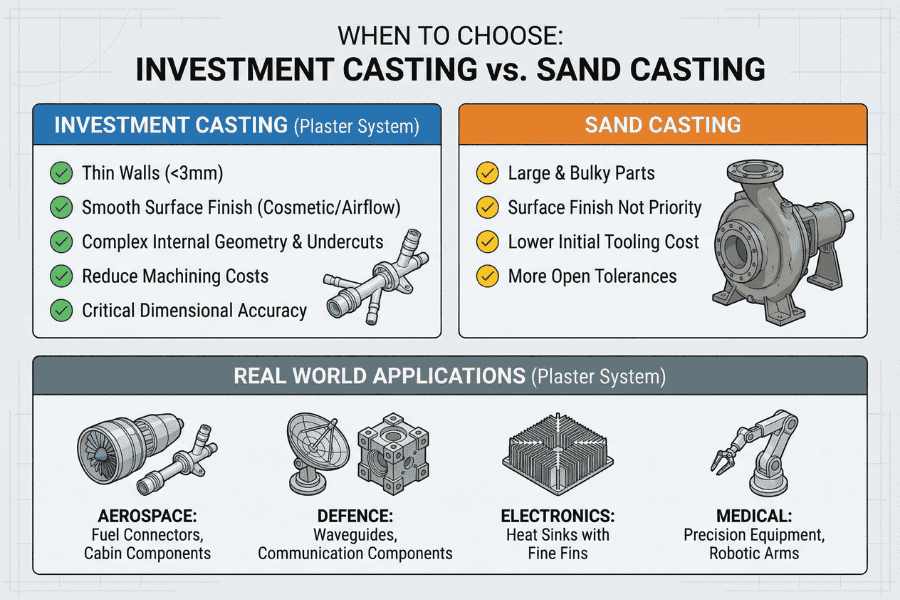

When to Choose Investment Casting vs Sand Casting
It is important to select the right process for your budget and requirements.
Choose Investment Casting (Plaster System) if:
You need thin walls (under 3mm).
You require a smooth surface finish (cosmetic or for airflow).
The part has complex internal geometry or undercuts.
You want to reduce machining costs.
Dimensional accuracy is critical.
Choose Sand Casting if:
The part is large and bulky.
Surface finish is not a priority.
You need a lower initial tooling cost.
Tolerances are more open.
Real World Applications
The versatility of the soluble plaster mould system sees it deployed across high tech sectors.
Aerospace: Fuel connectors, interior cabin components, and instrument housings where weight saving is vital.
Defence: Waveguides and communication components that require smooth internal surfaces for signal transmission.
Electronics: Heat sinks with fine fins that would be impossible to machine from a solid block.
Medical: Precision equipment, arms and robotic components.
Conclusion
Investment casting using the soluble plaster mould system is the bridge between the freedom of design and the reality of manufacturing. It allows engineers to create complex, lightweight, and beautiful non-ferrous parts that simply could not exist using other methods.
At Castech, we leverage this ancient yet advanced technology to deliver Investment Castings that meet the rigorous demands of modern industry. By understanding the capabilities of the plaster system, you can design better products, reduce weight, and lower your overall manufacturing costs.
